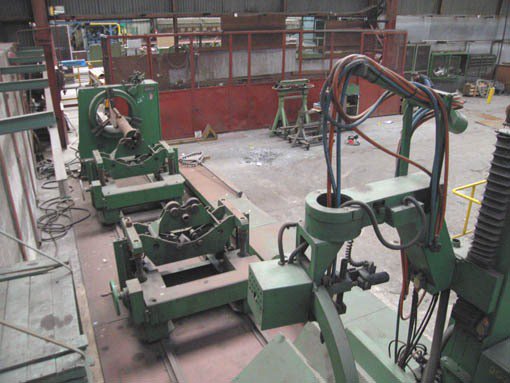

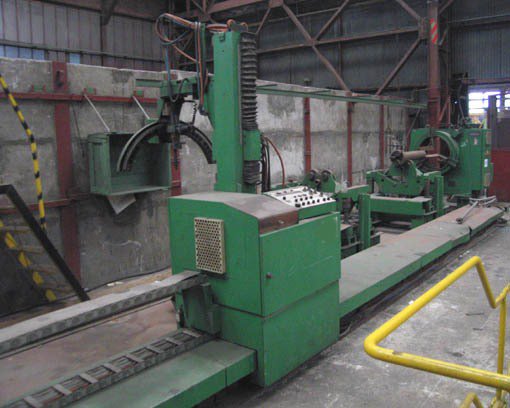

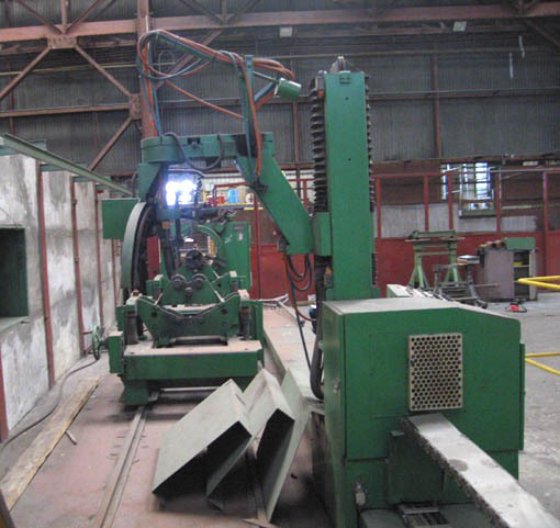

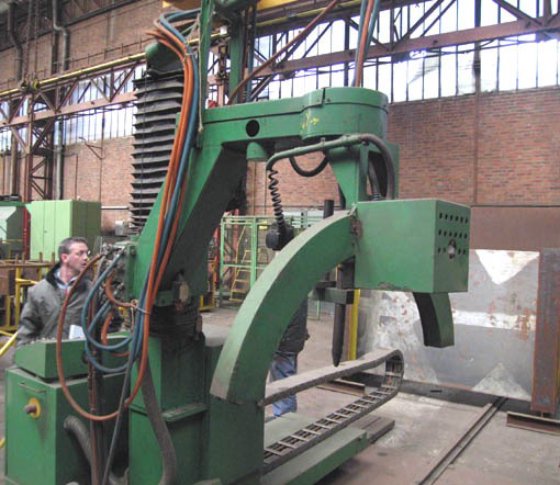

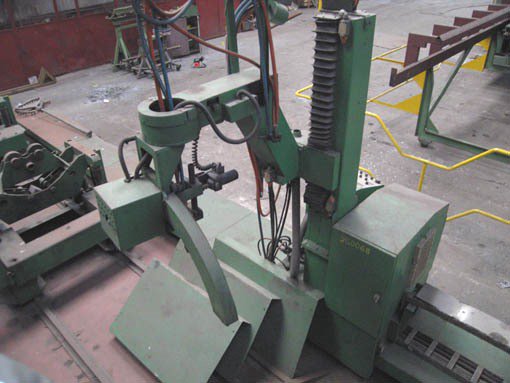

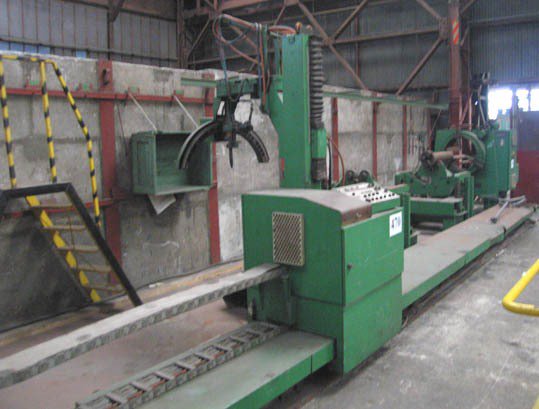

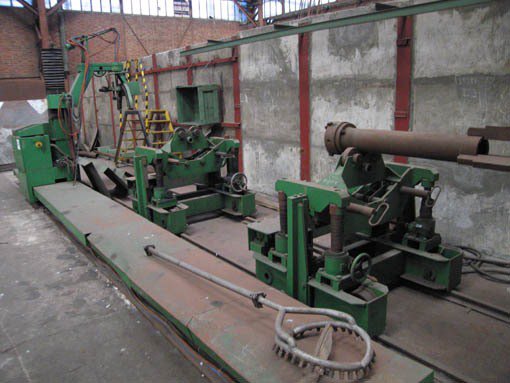

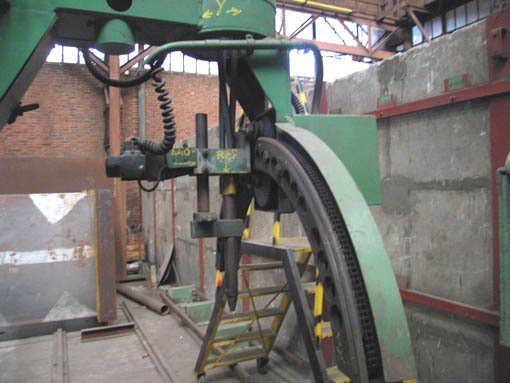

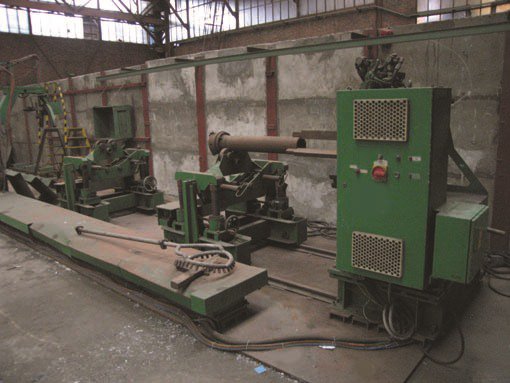

Gebruikte Müller Opladen 3D profile cutting in Deinze, Vlaanderen, België
Gebruikte
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specificaties
- Conditie
- gebruikte
- Voorraadnummer
- 9535
- Categorie
- Plasma snijders in België
- Subcategorie
- Brandsnijmachines
- Subcategorie 2
- gasbrandsnijmachines & plasmabrandsnijmachines
- Advertentie ID
- 87954926
Omschrijving
RB 650-1200 AGD

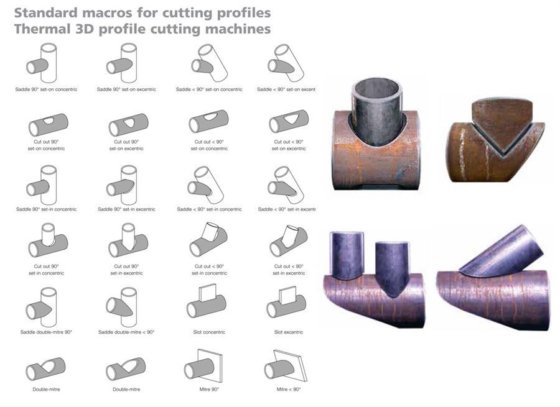

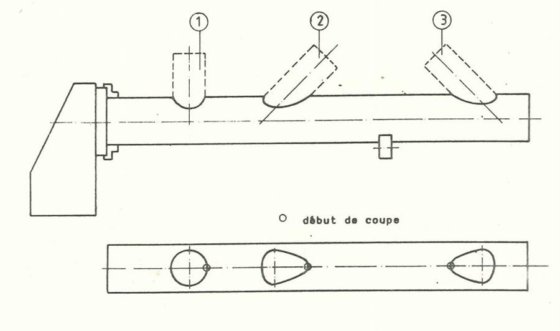

5-axis simultanous gas-cutting (plasma) for tubes

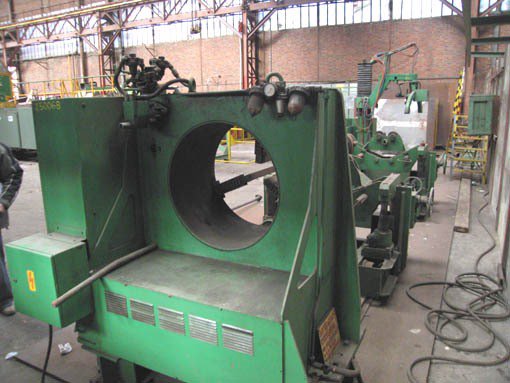

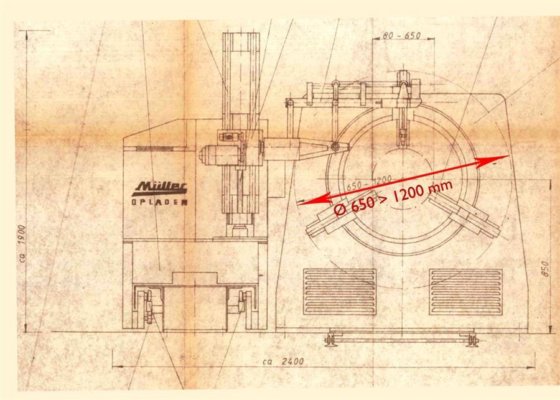

min/max workpiece dia through chuck : 80/650 mm
min/max workpiece dia: 650 1200 mm
diameter range of oscillation: 80 1200mm
chuck speed in manual position: 0 4m/min
speed of cuttinghead in manual position: 0 1400 mm/min

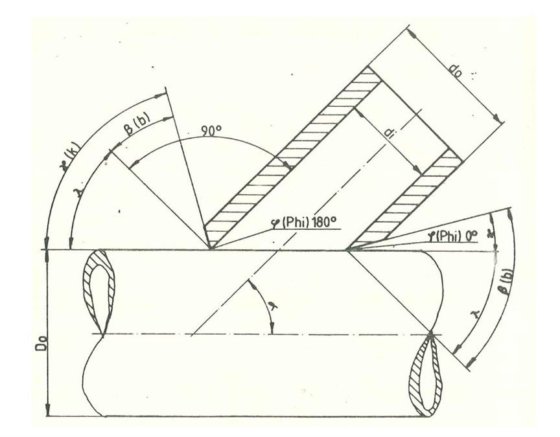

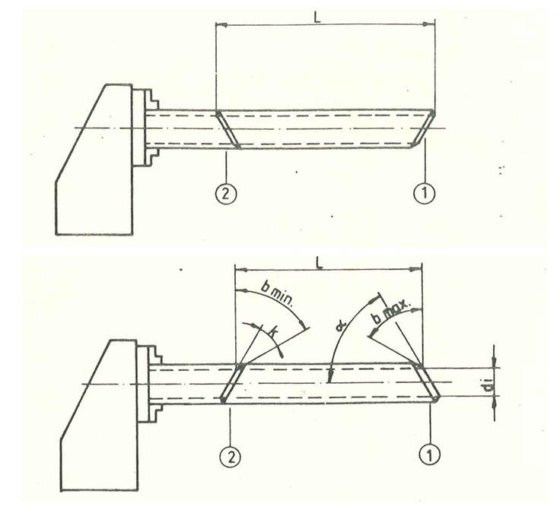

max torch angle: +/- 60° 45°

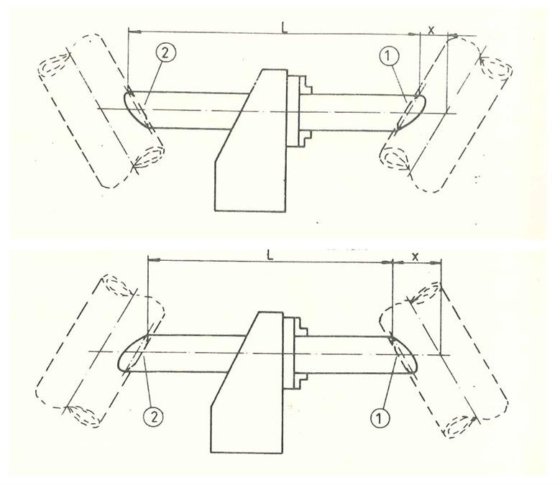

The CNC axes are as follows:
700 mm Rotation of the workpiece inside the chuck system (Y-axis)

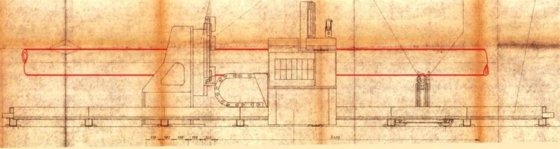

13 000 mm Longitudinal movement of the cutting head along the workpiece axis (X-axis)

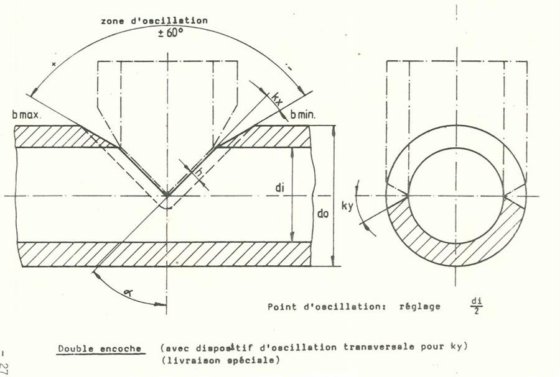

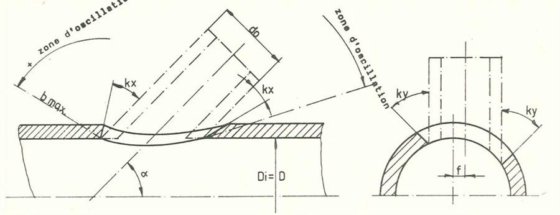

180° Oscillatory movement of the cutting head (B-axis)
360° Rotation of the cutting head (C-axis)
Transverse movement of the cutting head at 90° to the workpiece axis (V-axis)
