Gebruikte BSS | Soundweb 9088II in Bemmel, Gelderland, Nederland
Gebruikte
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specificaties
- Conditie
- gebruikte
- Voorraadnummer
- XC-33.5056
- Flightcase
- Not included
- Frequency response (+-0.5db)
- 15Hz to 20KHz
- Thd
- <0.01% (20Hz to 0KHz, +10dBu output)
- Maximum output level
- +20dBu
- Inter-channel crosstalk
- <-75dB
- Maximum network cable length
- 300m/1000ft
- Power consumption
- <35VA
- Mains volts
- 85-270V 50/60Hz
- Input impedance
- 3.5kOhms
- Maximum input level
- +20dBu (with 0dB gain)
- Gain range
- 0 to 70dB
- Cmrr
- >75dB at 1KHz
- Equivalent input noise (ein)
- <-128dBu typ with 150 Ohms source
- Phantom power
- 48V nominal
- Logic output voltage
- 0 or +5V unloaded
- Logic output impedance
- 440 Ohm
- Opto output series impedance
- 220 Ohms (isolated)
- Control input voltage
- 0 to 4.5v
- Control input impedance
- 4.7kOhms to +5V
- Opto output current
- 14mA max
- Opto output withstanding voltage (off)
- 80V max.
- Subcategorie
- Audio
- Subcategorie 2
- Stage equipment
- Advertentie ID
- 85607233
Omschrijving

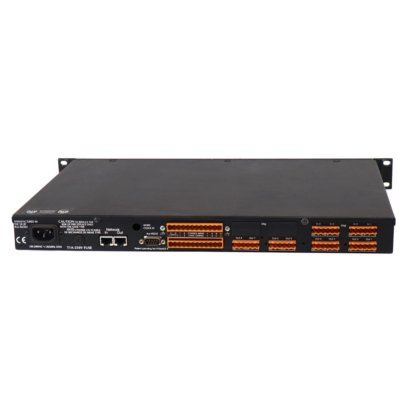

Used | BSS - Soundweb 9088II
The 9088ii Networked Signal Processor forms the heart of the Soundweb system. In a single rack space unit, it offers 8 analogue audio inputs, 8 analogue audio outputs, 200 MIPS of digital signal processing, a pair of network jacks, and a variety of control options.

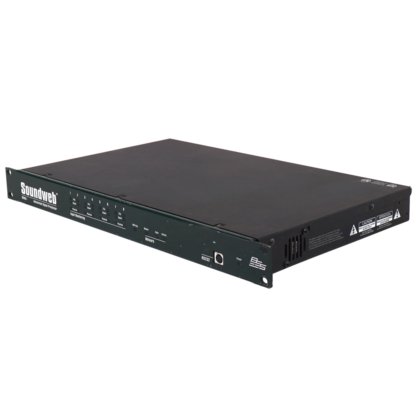

The front panel of the 9088iis has a number of LEDs to allow a quick view of activity on the audio inputs and on the network. It also has a mini-DIN connector for an RS-232 serial port: this is normally used to connect a PC for system setup and control.
Technical specifications
General
Line input card
Universal microphone/Line input card
Control ports
