Nieuw Trommelmolen TM 300 in Haan, Noordrijn-Westfalen, Duitsland
Nieuw
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specificaties
- Conditie
- nieuw
- Toepassingen
- pulverizing, mixingused as Bond Index Tester: quantification of grindability of ores and minerals
- Toepassingsdomein
- biologie, bouwmaterialen, chemie, engineering / electronica, geneesmiddelen / farmaceutica, geologie / metallurgie, glas / keramiek, landbouw, milieu/ recycling
- Toevoermateriaal
- zacht, hard, breekbaar, vezelig - droog of nat
- Maalprincipe
- wrijving
- Korrelgrootte materiaal*
- < 20 mmused as Bond Index Tester: < 3.35 mm with ball module / 12.50 mm with rod module
- Eindfijnheid*
- < 20 µmused as Bond Index Tester: < 100 µm with ball module / 2,100 µm with rod module
- Batchgrootte / toevoerhoeveelheid*
- minimum 1 l / maximum 20 lused as Bond Index Tester: min. 15 kg with ball module / min. 20 kg with rod module
- Rotatie snelheid
- 1 - 80 min-1used as Bond Index Tester: 70 min-1 with ball module / 46 min-1 with rod module
- Aantal maalstations
- 1
- Materiaal van maalwerktuigen
- gehard staal, stainless steelused as Bond Index Tester: hardened steel
- Maaltrommel afmetingen
- 5 l / 10 l / 21.7 l / 43.3 lused as Bond Index Tester: 21.7 l with ball module / 43.3 l with rod module
- Instelling maalduur
- digitaal
- Aandrijving
- 3-fasen asynchroon motor met frequentie omvormer
- Aandrijfvermogen
- 0.75 kW
- Gegevens electriciteit
- verschillende spanningen
- Aansluiting electriciteit
- mono fase
- Beschermingsklasse
- IP 41
- Vermogen
- ~ 1800 VA
- B x h x d gesloten
- 1500 x 1200 x 700 mm
- Netto gewicht
- ~ 306 kg
- Standaarden
- CE
- Categorie
- Kogelmolens in Duitsland
- Subcategorie
- Malen
- Advertentie ID
- 78058706
Omschrijving

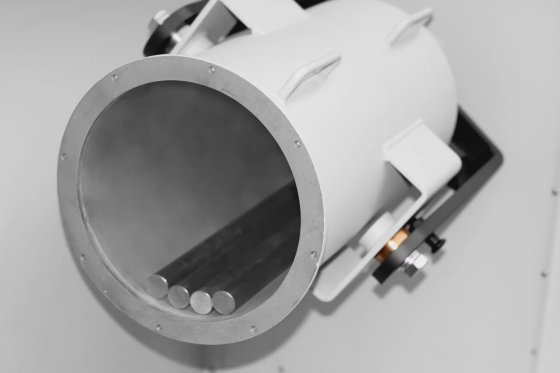

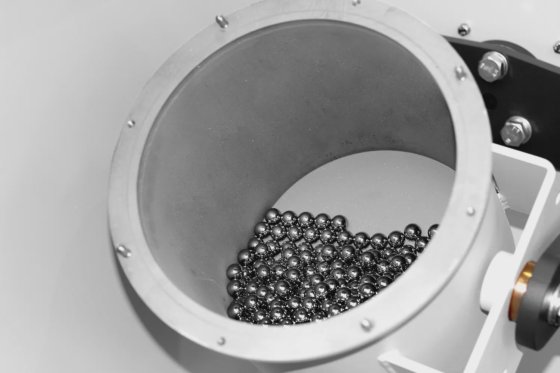

The TM 300 Drum Mill is utilized for preparing granules and powders through a grinding process conducted in either dry or wet conditions. This versatile grinder can function as either a Ball or a Rod Mill by employing the corresponding module. To ensure an efficient grinding process, it is essential to use a sufficient number of balls or rods. Depending on the sample material, a final fineness below 20 microns can be achieved.

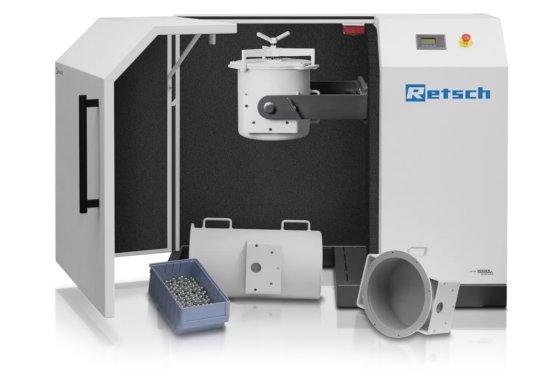

The drum mill comprises a gear motor mounted on a robust steel frame, a set of separation grids, and a sample collector. The TM 300 is designed with a yoke and locking mechanism that facilitates easy access to the sample. Cleaning is made convenient by a quick-release locking mechanism, allowing effortless removal of the drum cover.
The TM 300 accepts sample volumes up to 20 l and is therefore also suited for upscaling processes.

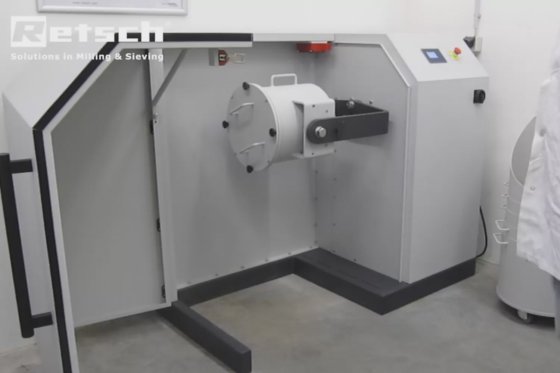

Trommelmolen TM 300
Benefits at a glance
Powerful and quick processing of large quantities up to 20 l
