Nieuw Kogeltrilmolen MM 500 control in Haan, Noordrijn-Westfalen, Duitsland
Nieuw
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specificaties
- Conditie
- nieuw
- Toepassingen
- cryogenic grinding with liquid nitrogen
- Toepassingsdomein
- biologie, bouwmaterialen, chemistrie / kunststoffen, engineering / electronica, geneesmiddelen / farmaceutica, geologie / metallurgie, glas / keramiek, landbouw, milieu / recycling, voeding
- Toevoermateriaal
- hard, middel-hard, zacht, breekbaar, elastisch, vezelig
- Maalprincipe
- impact, wrijving
- Korrelgrootte materiaal*
- <= 10 mm
- Eindfijnheid*
- ~ 0.1 µm
- Batchgrootte / toevoerhoeveelheid*
- max. 2 x 45 ml
- Volume maalkamer
- max. 2 x 125 ml
- Aantal maalstations
- 2
- Vibrational frequency
- 3 - 30 Hz (180 -1800 min-1)
- Setting of temperature setpoint
- digital, 0 ... -100 °C
- Setting of sample cooling time
- digital, 0 ... 60 min
- Instelling maalduur
- digitaal, 10 s - 8 h
- Totale maalduur
- 99 u
- Memoriseerbare standaardprocedures
- 12
- Aantal cyclus programma's (geheugen)
- 4 (met 99 herhalingen)
- Typische gemiddelde maalduur
- 30 s - 2 min
- Droog malen
- Ja
- Nat malen
- Ja
- Cryogeen malen
- Ja

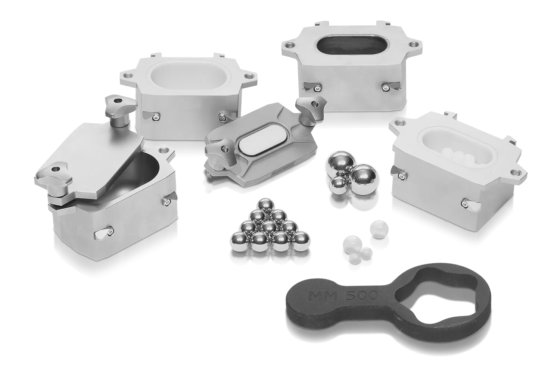

- Maalbekertypes
- screw-lock jar with integrated safety closure devices, multi cavity jar, adapter for safe-lock reaction vials
- Materiaal van maalwerktuigen
- gehard staal, roestvrij staal, wolframcarbide, zirkoniumoxide
- Maalbeker maten
- 10 ml / 25 ml / 50 ml / 80 ml / 125 ml
- Gegevens electriciteit
- 100-120 V, 50/60 Hz; 200-230 V, 50/60Hz
- Aansluiting electriciteit
- mono fase
- Beschermingsklasse
- IP 30
- Vermogen
- 750 W
- B x h x d gesloten
- 690 x 375 x 585 mm
- W x h x d closed with cryopad
- 690 x 485 x 585 mm
- Netto gewicht
- ~ 26 kg
- Standaarden
- CE

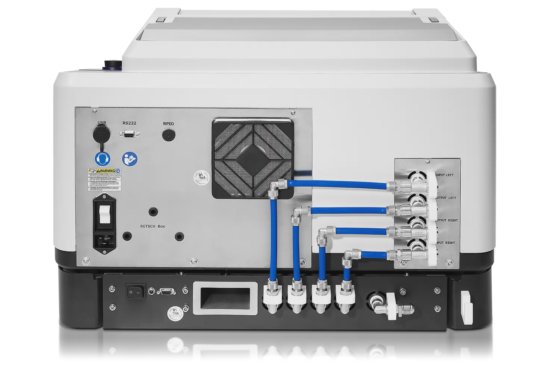

- Connection thread size device input
- G 1/4" (inner thread)
- Connection thread size tubing set
- G 3/8" (outer thread)
- Permissible operating pressure cooling device (provided by customer)
- 0 ... 5 bar
- Typical pressure range of continous cooling unit e.g. cryostat
- 1 ... 2 bar
- Permissible pressure range of ln2 supply
- 1.2 ...1.4 bar
- Permissible fluids
- Liquid nitrogen
- Thermal applications
- embrittling, cooling, heating, temperature control
- Temperature range of fluids
- -196 °C
- Temperature range of cooling plates
- +100 °C ... -100 °C
- Interface
- RS-232 (MM 500 control)
- Communication connection
- via included connection cable
- Power supply
- via external power supply
- Electrical supply data (input external power supply)
- 100-230V, 50/60 Hz
- External power supply classification
- Medical grade isolation level
- Electrical supply data (input cryopad)
- 24 V, 1 A
- Toebehoren
- LN2 Autofill 150L, LN2 Autofill 50L
- Led status light
- Ja
- B x h x d
- 670 x 110 x 590 mm
- Connection thread size of stainless steel tubing adapter
- UNF 3/4"
- Emissions
- Liquid nitrogen gas, condensation
- Connection
- via included tubing set
- Exhaust outlet
- via included Exhaust adapter and aluminum corrugated tube
- Temperature control algorithm
- PID temperature control
- Categorie
- Kogelmolens in Duitsland
- Subcategorie
- Malen
- Advertentie ID
- 60376362
Omschrijving
The MM 500 control is a high energy laboratory ball mill that can be used for dry, wet and cryogenic grinding with a frequency of up to 30 Hz. It is the first mixer mill in the market that allows to monitor and control the temperature of a grinding process.
The temperature area covers a range from -100 to 100 °C. For maximum flexibility, the mill can be operated with various thermal fluids, enabling the use of different tempering devices for cooling or heating. If liquid nitrogen is chosen for cooling, the mill needs to be equipped with the optionally available extension device cryoPad. The innovative cryoPad technology allows to select and control a specific cooling temperature in the range from - 100 to 0 °C for the grinding process.
The only Mixer Mill with temperature control
Max. speed 30 Hz
Horizontal oscillation causes strong impact effects for effective sample processing
Up to 10 mm feed size and 0.1 µm final fineness
2 grinding stations for jars of min. 2 ml and max.
