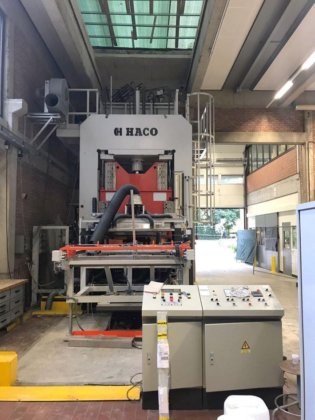

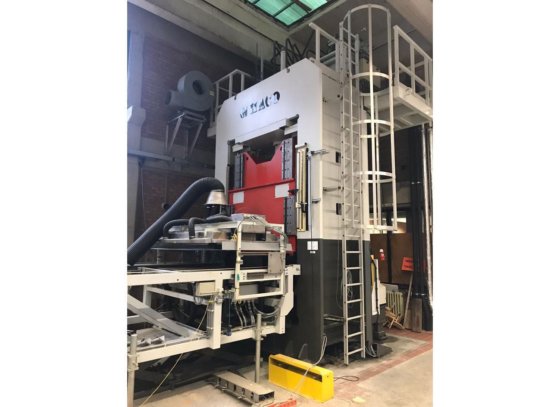

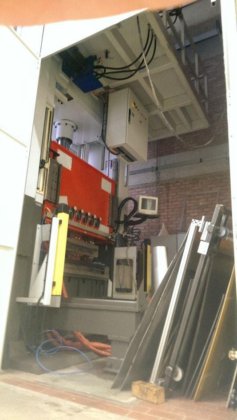

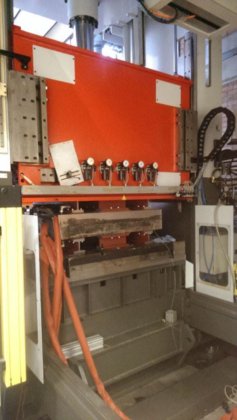

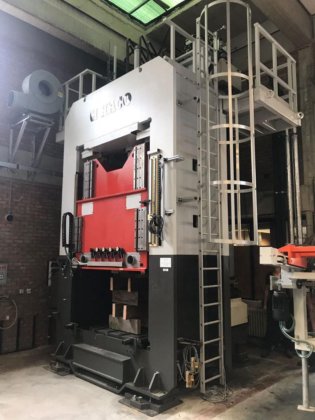

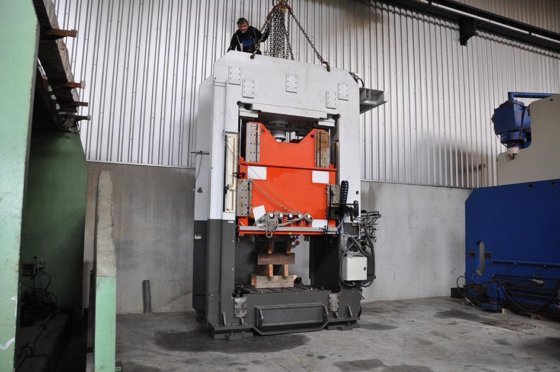

Gebruikte Haco 100 ton CNC in Deinze, Vlaanderen, België
Gebruikte
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specificaties
- Conditie
- gebruikte
- Voorraadnummer
- 10262
- Capaciteit
- 100 ton
- Max regelbare slag
- 750 mm
- Valsnelheid
- 600 mm/sec
- Perssnelheid
- 45 mm/sec
- Afstand tussen de staanders
- 1600 mm
- Max hoogte tussen tafel -- stempel in
- 1200 mm
- Tafelafmetingen
- 1600 x 1000 mm
- Hoofdmotorvermogen
- 80 kW
- Gewicht
- 30 ton
- Categorie
- Persen in België
- Subcategorie
- Dubbelkolomspersen
- Advertentie ID
- 58144487
Omschrijving
This press was previously used by a university for testing purposes, but this press can also be used in a production environment. It's ideally suited for working with composite parts.

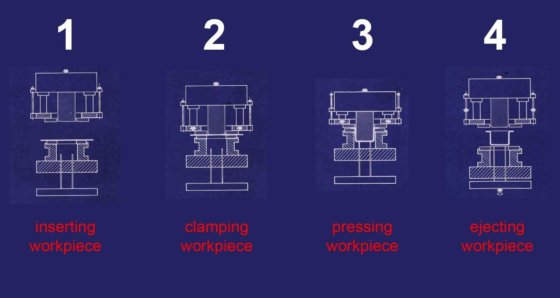

The press has a triple effect and features:

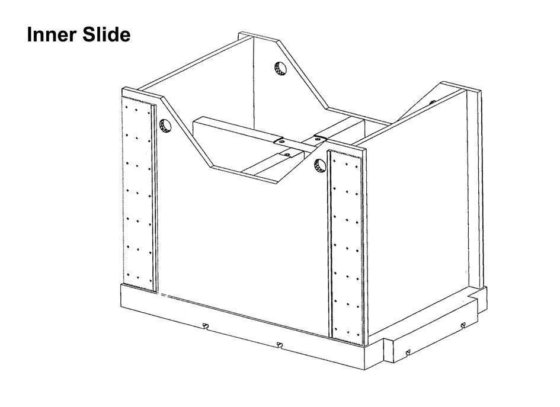

- an inner slide with a stroke of 750 mm
- an outer slide with a stroke of 750 mm

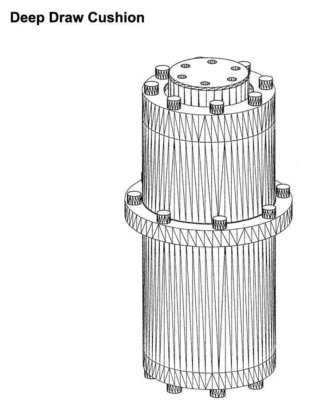

- a deep draw cushion which can act as an upwards pressing force (stroke of 750 mm and 40 ton force) AND as an ejector (2 cylinders of 35 ton each)
- a heating unit with infra red beams (2 times 50 kW), possibility to heat 4 different section of the table with the CNC control

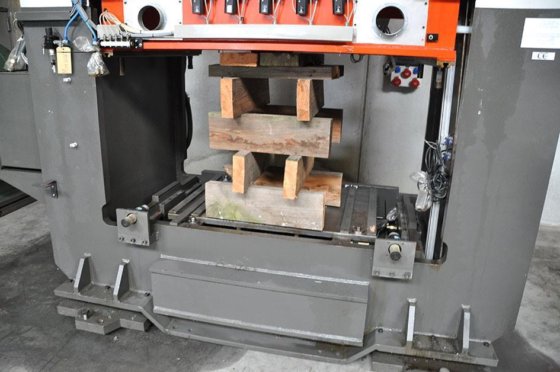

Table features ejectors with dia 40 mm

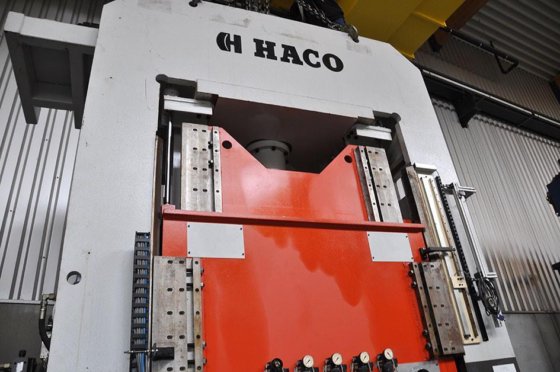

The press features X-guideways which prevents the inner slide from getting stuck or a no smooth downward movement due to heat radiation.

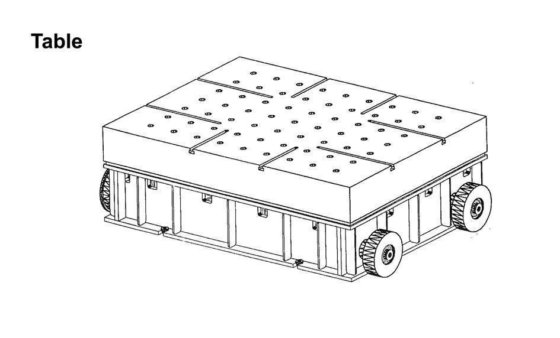

Table is manually deployable
Press can be used both stand-alone as CNC controlled

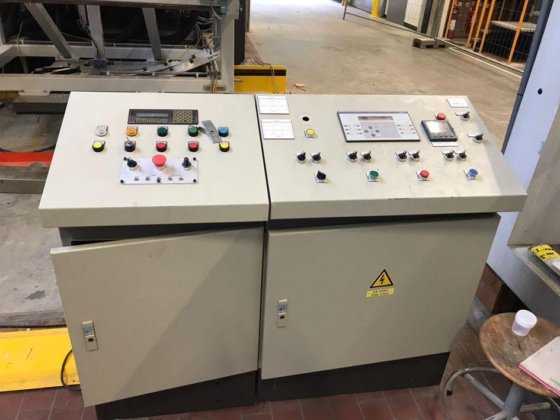

CNC control: Robosoft BC40

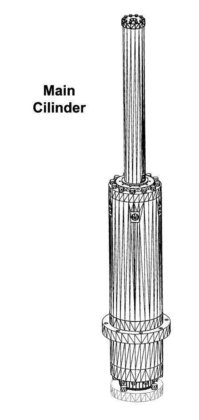

Diameter of main cilinder: 230 mm
Oiltank of 1800 liters
Positionning accuracy: 0,1 mm at a speed smaller then 50 mm/sec
